Description
Dual-color for more visibility
This switch boasts a unique feature set. In addition to the incorporated fuse, it offers a dual-color LED lighting functionality. This innovative design ensures visibility even when the switch is turned off. When in the off position, a vivid red LED illuminates, providing clear visual indication. Upon activation, the switch emanates a distinctive blue light, signaling its operational status. This versatility makes it ideal for applications where both the state of the switch and its location need to be easily discernible.
Product Details
Product Features
- Protection Level – IP67
- Install Diameter – 19 mm
- Operation Type – Latching
- Voltage – 12V/24V
- Switch Combination – 1NO 1NC
- Head Shape – Flat Round Head
- Terminal Type – 4 PIN TERMINAL
- Operataion Disctance – About 2,5 mm
Product Material
- Body Material – Stainless Steel
- Button Material – Stainless Steel
- Base Material – PBT
- Contact Material – Silver Alloy
Environmental Specifications
- IP Degree – IP 67
- Operation Temperature – -20℃～+55℃
- Operating Pressure – About 3-5N
- Torque – 5-14Nm
LED Specification
- LED Type – Annular LED
- LED Color – Blue / Red
- LED Voltage – 12V/24V
- LED Life – approx. 40.000 Hours
Electrical Specification
- Max Switch Rating – 20A / AC/DC
- Contact Resistance – ≤ 50mΩ
- Insulation Resistance – ≥ 10000mΩ
- Dielectric Strength – 2000VAC
- Mechanical Life – More than 400.000 cycles
What is the Difference between Latching and Momentary switches?
Latching switches
Latching switches are switched on by the user and then remain on until switched off again. They do not require continuous compression from the user.
Momentary switches
Momentary switches require continuous compression. They will switch on when the user compresses the switch and will remain on only for as long as there is pressure on the switch. Once the pressure is removed they will switch off.
Build-in FUSE
If the current surpasses the rated threshold, the switch will seamlessly disconnect automatically. Conversely, if the current falls below the rated level, the switch will resume normal operation, ensuring both safety and uninterrupted functionality.
Fuse Switch Operation
Consider a 5A switch rating for illustration:
- If the switch handles a current of 1,2 times its rating (6A), it can operate continuously without issues.
- However, when the switch encounters a current of twice its rating (10A), it will disconnect within 5 seconds.
- Once the excess heat dissipates, the switch autonomously returns to its regular operational state.
Refer to the following table for other specifications:
FUNCTION | CURRENT x 1,2 | CURRENT x 1,5 | CURRENT x 2 | When the current |
SWITCH RATING | Switch can heat dissipates run | Switch will be | Switch will be | |
10A | 12A | 15A | 20A | Switch automatically |
20A | 24A | 30A | 34A | Switch automatically |
In the pack

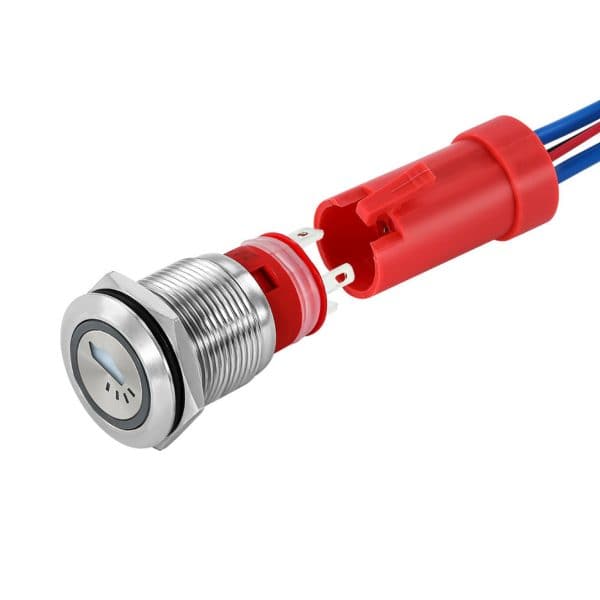

1 x Latching DUO color Push Button Switch with fuse and wiring
Connect as described in the illustration
Description
Seaeclipse
Push Button Switches
- Mechanical Life 400.000 Cycles
- Led Life 40.000 Hours
- Water and Dustproof - Protection IP67
- Carring Large Current 10A/20A
Crafted with a focus on durability, ensuring quality and enhanced safety.
Carring Large Current
These push buttons are meticulously designed with 95% silver contacts, guaranteeing unparalleled contact performance for critical electrical systems.
With their high-current capability, these push buttons are ideal for demanding marine applications where robustness and reliability are paramount.
Product Waterproof Concept
Built-in Waterproof Seal
Crafted with precision, the waterproof harness seamlessly integrates into the push switch button, safeguarding its internal components from water ingress. Whether facing rain, splashes, or high humidity, this harness provides a barrier against moisture, preserving the functionality of the switch and enhancing its durability.
Beyond its protective features, the waterproof harness also simplifies installation and maintenance. By eliminating the need for additional waterproofing measures or complex sealing techniques, it streamlines the assembly process, saving time and effort for installers.
316 for Marine Environment
Crafted from premium stainless steel 316 material, meticulously chosen for its exceptional anti-corrosion properties, making it an ideal choice for marine environments.
Stainless steel 316 is renowned for its superior resistance to corrosion, pitting, and rusting, even in the harsh and corrosive conditions encountered in marine settings. This marine-grade material offers unmatched durability, ensuring longevity and reliability in saltwater environments where traditional materials may succumb to corrosion over time.
